Description: Canaries aren't just hardware devices. You can run Canaries within your OpenStack infrastructure, using the same Console as the rest of your Canary fleet.
Requirements: The OpenStack VM requirements for a fully functioning bird are:
- Disk space larger than 10GB
- 2GB memory
- Single CPU core
Follow the steps below to create your OpenStack Canary:
Step 1:
Log in to your Console.
Step 2:
1 - Click the Add icon.
2 - Click Add New Canary.
Step 3:

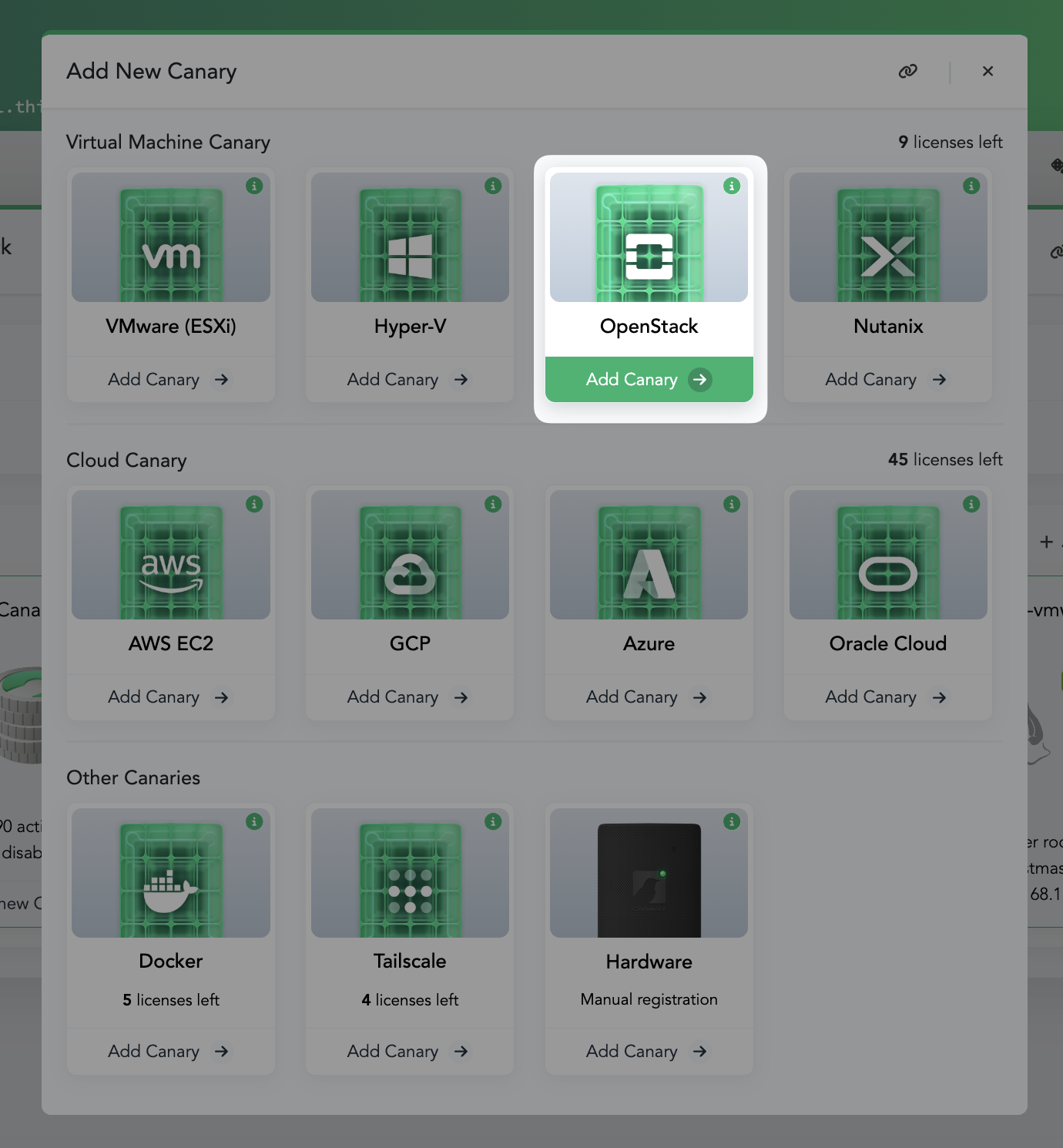

Select Add OpenStack Canary.
Step 4:
Click on Download Zip to download the OpenStack Canary archive to your local machine.
Once the download has been completed, unzip the file to a storage location on your local machine. There is 1 file with a .qcow2 extension in the Zip archive.
Deploying a Canary to OpenStack
Step 5:
Open the OpenStack Horizon UI and navigate to the "Images" page.
Choose "Create Image"
Step 6:
Upload your OpenStack Canary image to OpenStack.
1. Specify an image name.
2. Click "Choose file", browse to the OpenStack Canary Image QCOW2 file your extracted from the Zip in Step 4 (the file will end in .qcow2), and select it.
3. Ensure Format is set to "QCOW2".
4. Click "Create Image".
Step 7:
Select your newly uploaded Canary image and click "Launch".
Step 8:
Configure the instance details.
1. Provide a name for the new Canary instance.
2. Click next.
Configure the instance Source.
1. Ensure the Boot Source is set to "Image".
2. Allocate a volume of size 10GB (or more).
3. Ensure your uploaded Canary image appears under "Allocated".
4. Click "Next" to proceed.
Select the instance Flavour, we recommend "ds2G".
Allocate a network to your instance. The added network should allow at least outbound DNS traffic.
Note: If you utilise a private network, you may need to attach a floating IP address later to allow outbound network connections.
There is no need to configure additional network ports, if a network is selected (as above). Skip forward by clicking Next to reach the "Security Groups" page. Allocate an appropriate security group. We recommend a permissive group, to expose services configured on the Canary.
You can now start the configured instance by clicking "Launch Instance".
Step 9:
On your Console, you should see a pop up to confirm your new Canary.
1. If you have multiple flocks choose one for your new Canary.
2. Click Add Canary.
Step 10:
Your Virtual Canary will boot and connect back to your Console. This may take a minute or two.
You can set up your Virtual Canary from within your Console using the remote management by following the guide found here.
