Description: Allows you to connect and configure your Canary via an IP address.

Follow the steps below to connect and configure your Canary over Ethernet.

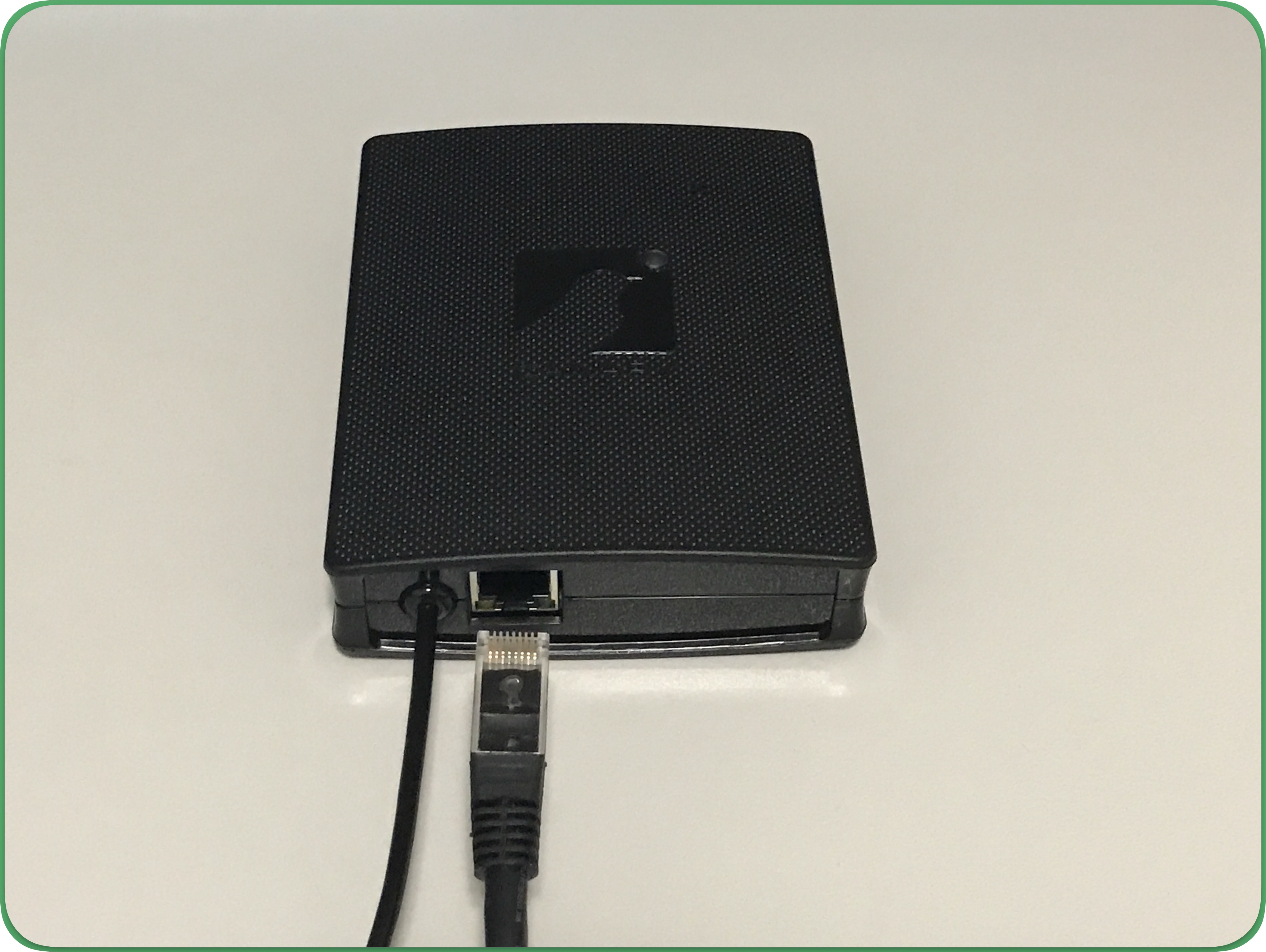

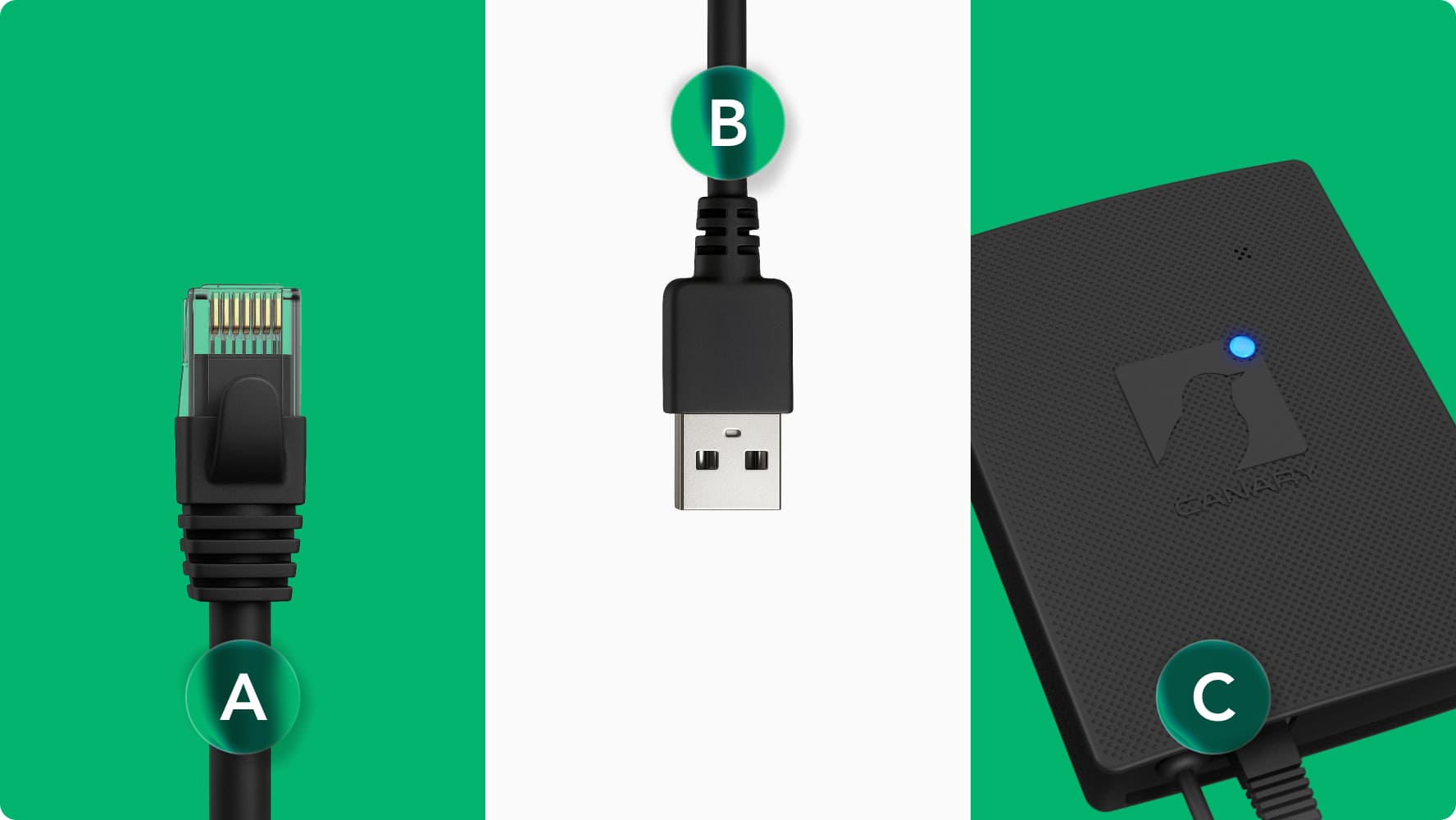

Step 1. Plug the Canary into the Network

Connect your Canary to your network with an Ethernet cable.

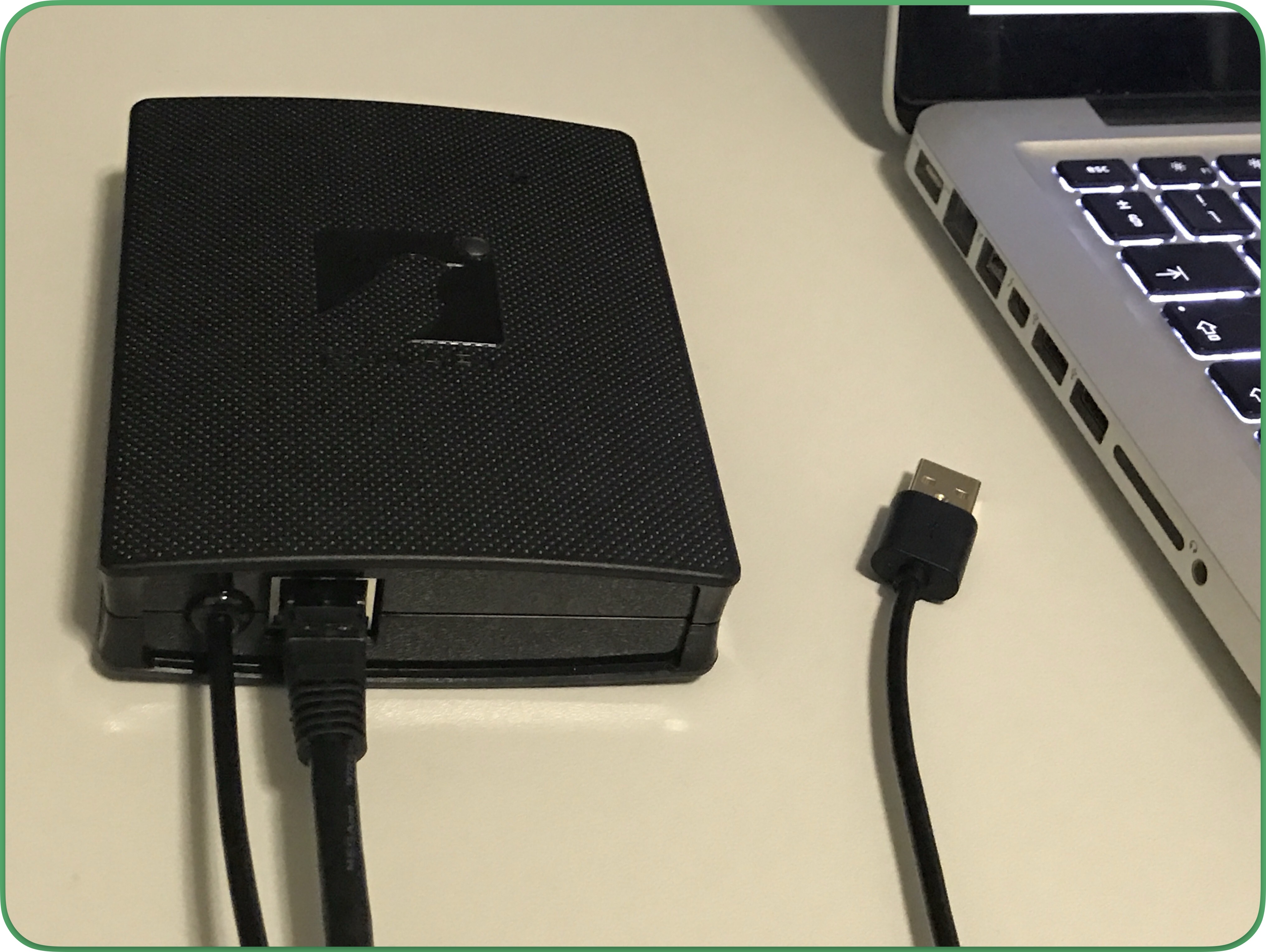

Step 2. Power up your Canary

Plug the USB power cable into any USB socket OR supplied USB power adaptor.

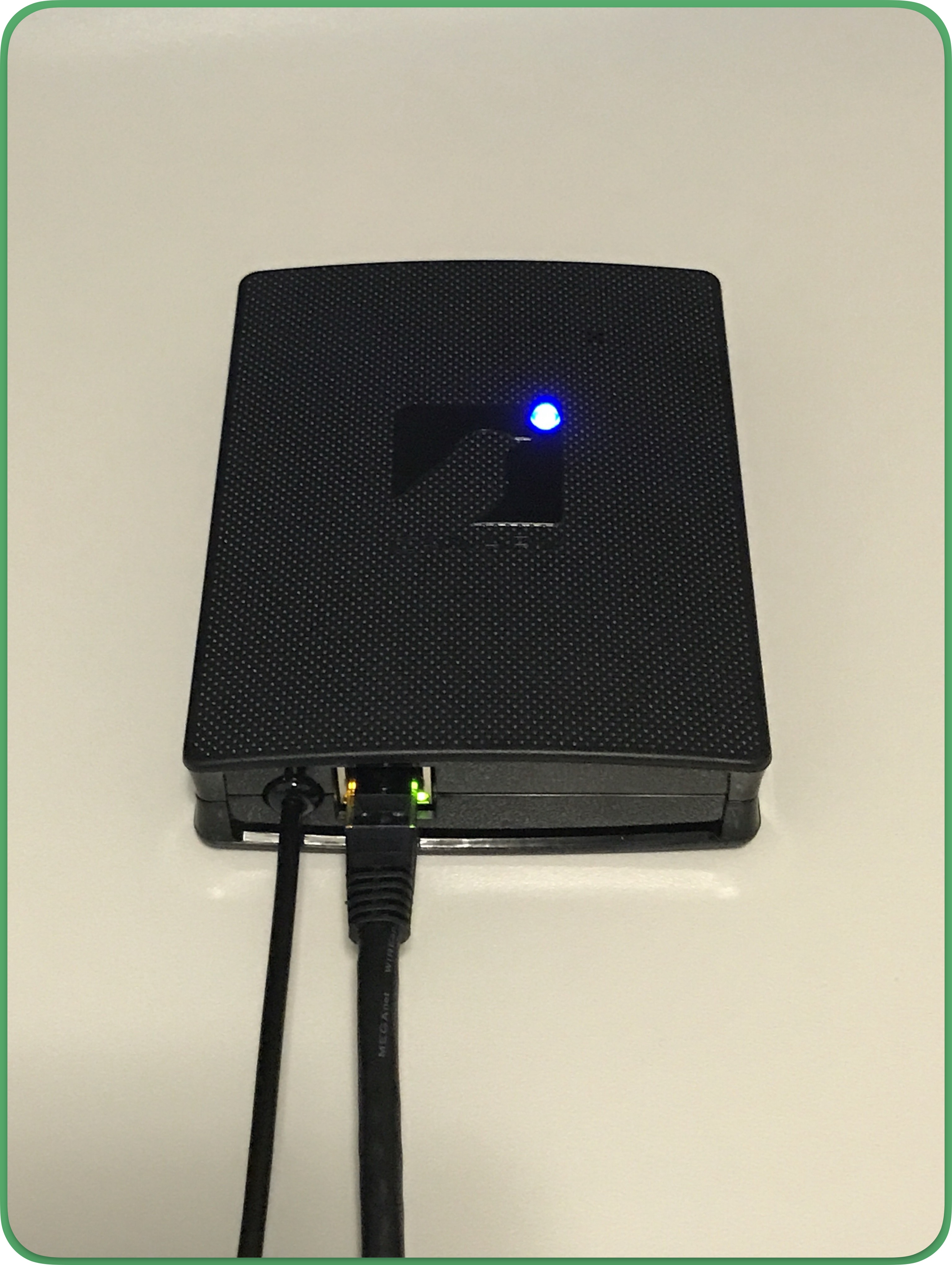

Step 3. Wait for the blue status LED

As your Canary boots, hold down the button (the LED is a button too!) for about 15 seconds. The status LED will show purple, then blue. When it turns blue, it's ready to be setup.

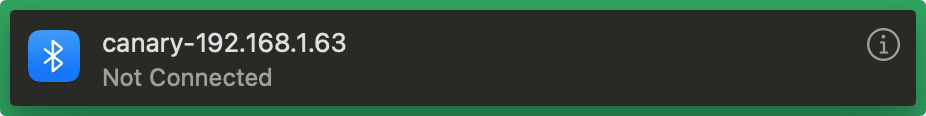

Step 4. View the IP address

Use your workstation's Bluetooth tool to discover and view the Canary's IP address.

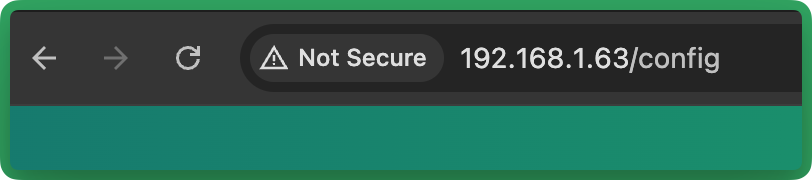

Step 5. Surf to your Canary

In your browser surf to the IP address.

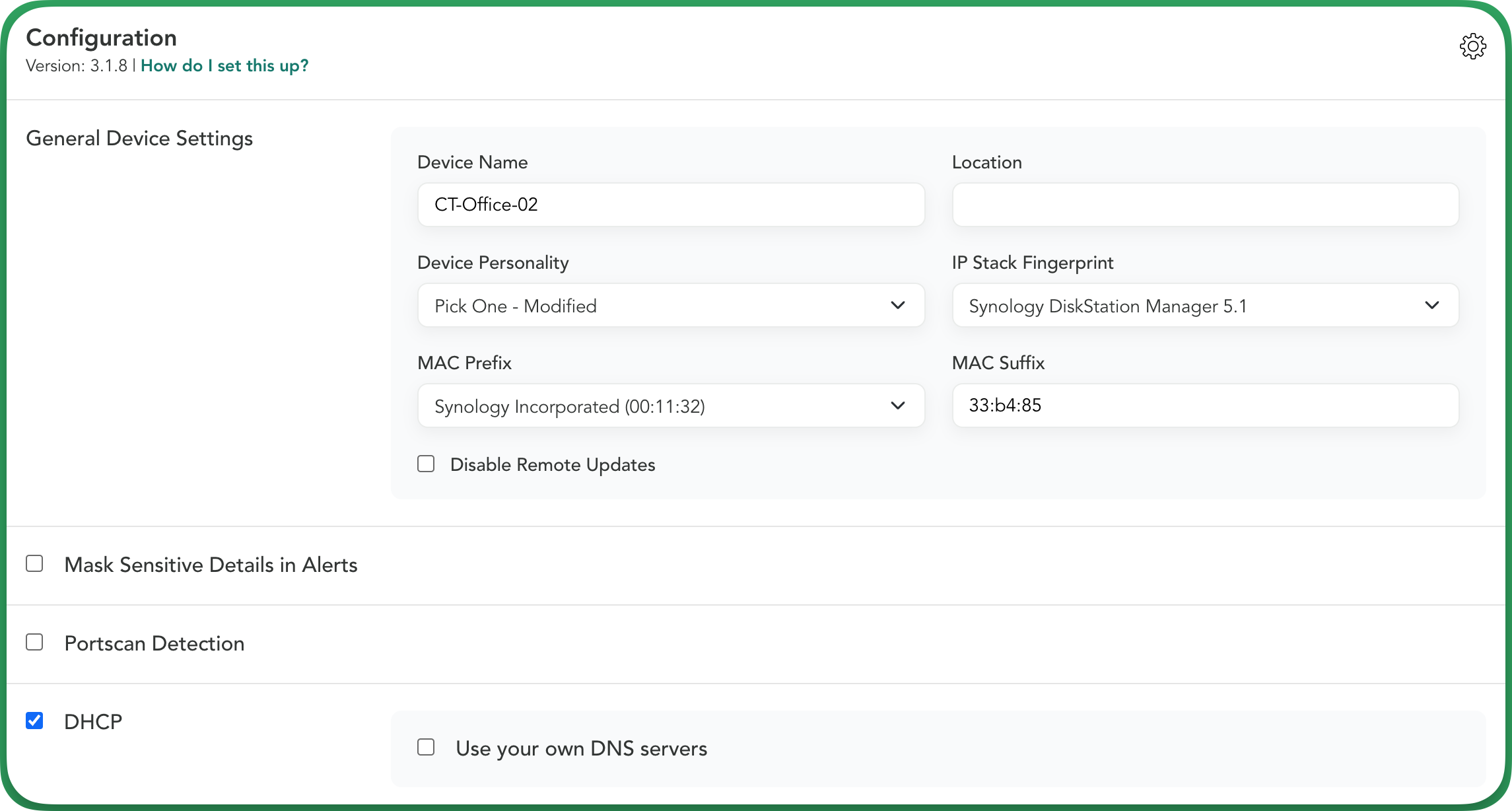

Step 6. Configure the Canary

Give your Canary a name and record where it'll be installed, configure its IP settings (either static or DHCP), select a device personality and Save.

For more configuration options, click here.

Step 7. Smile! You're almost there!

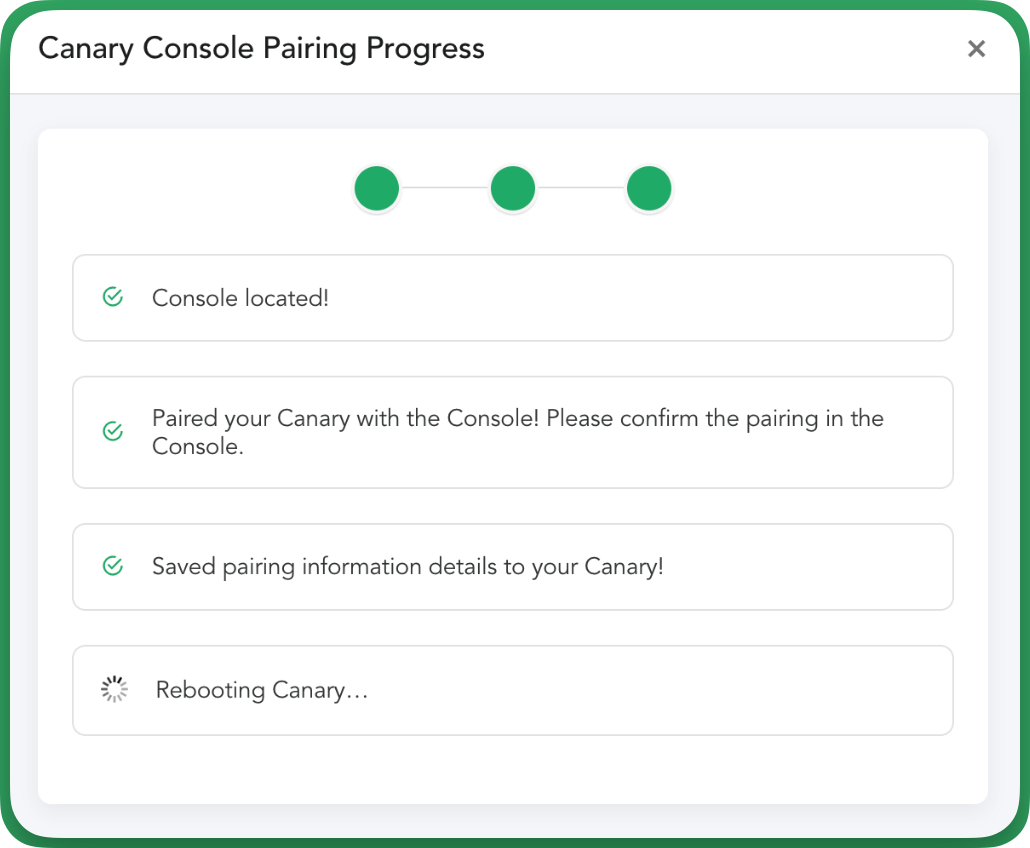

Step 8. Register your Canary

Your configured Canary now needs to register itself with your console. Open another browser tab to your console and login. This will allow the Canary to register automatically.

If automatic registration fails, click here for information about offline registration.

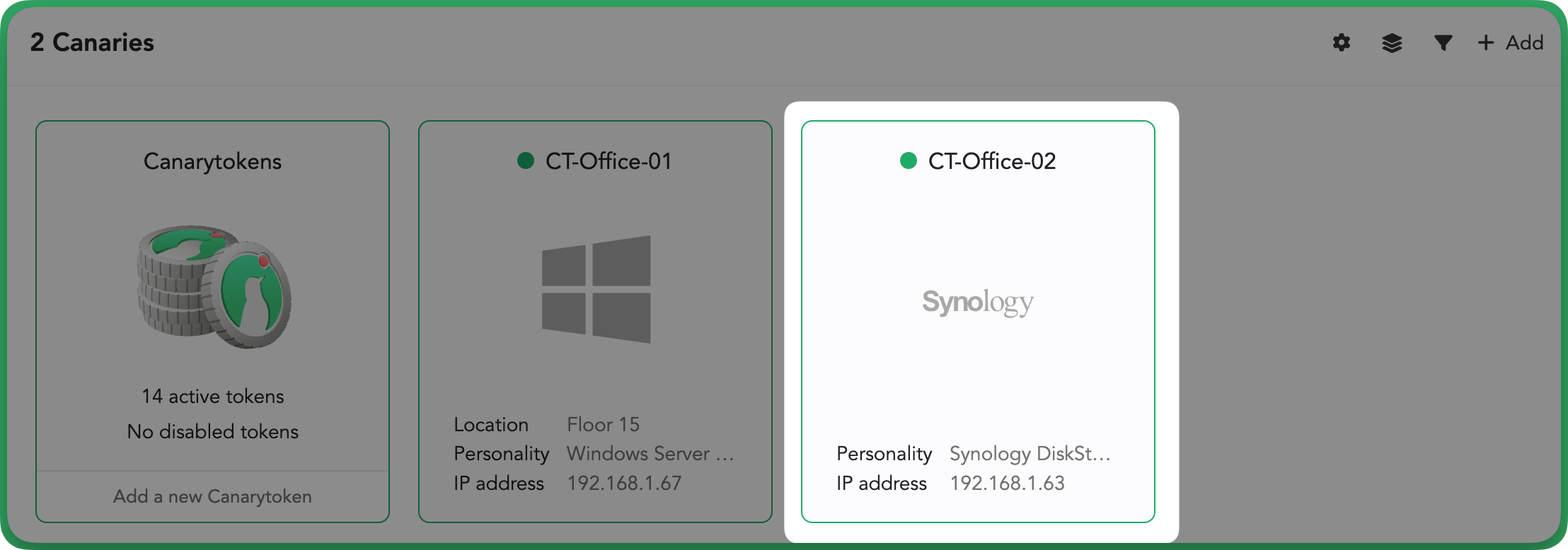

Step 9. Deploy into production

With your Canary setup, move it to its production environment and power it up. When the status LED goes Green, the Canary is live.
