Description: Canaries aren't just hardware devices. You can run Canaries inside your Microsoft Hyper-V infrastructure, using the same Console as the rest of your Canary fleet.
Note: Hyper-V Canaries are only supported on our new interface. We will enable the new interface for you when you request Hyper-V Canaries if you have not already got it enabled.
Requirements: All that's needed for a fully functioning bird:
- Disk space larger than 10GB
- 2GB memory
- Single CPU core
Follow the steps below to create your Hyper-V Canary:
Step 1:

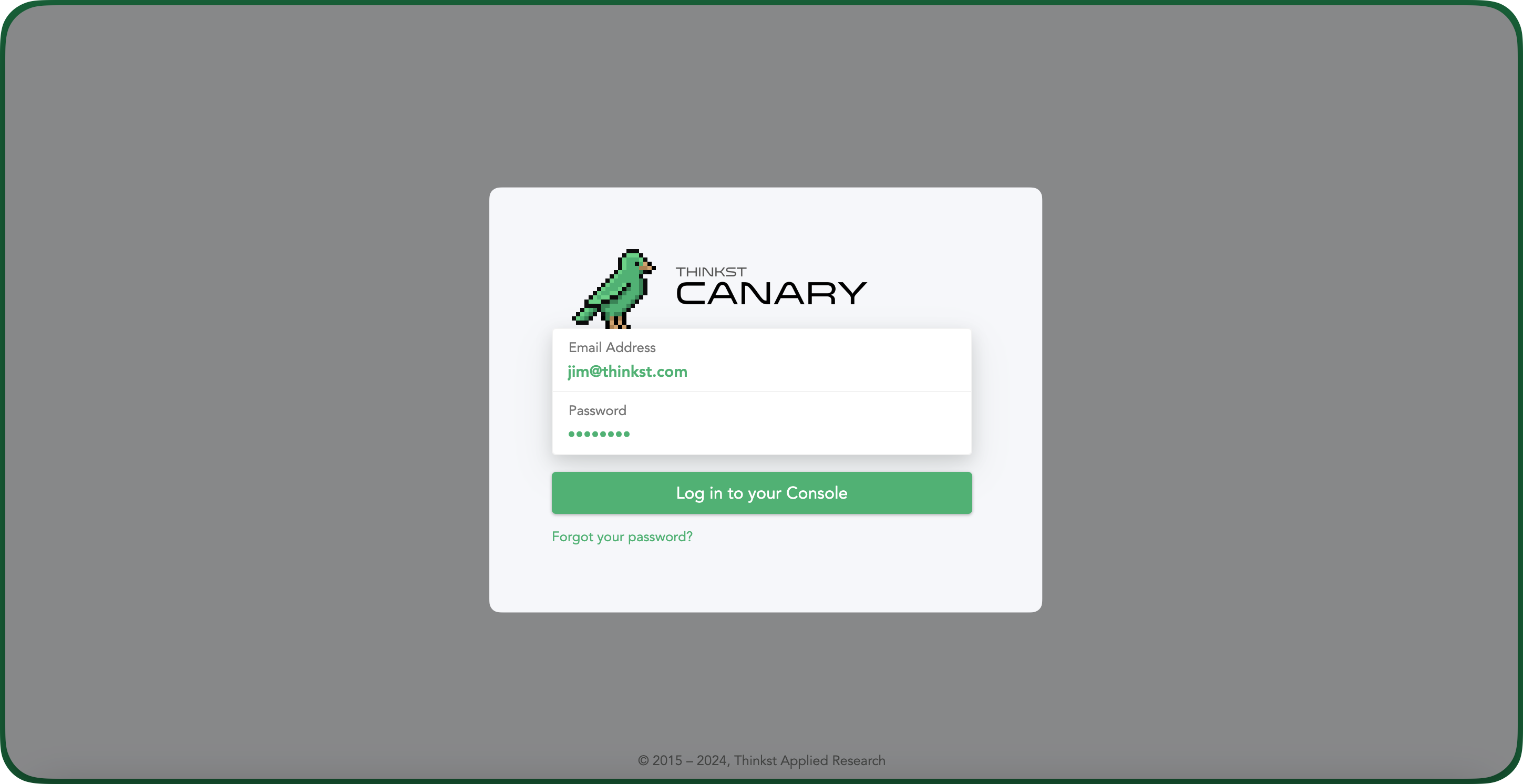

Log in to your Console.
Step 2:

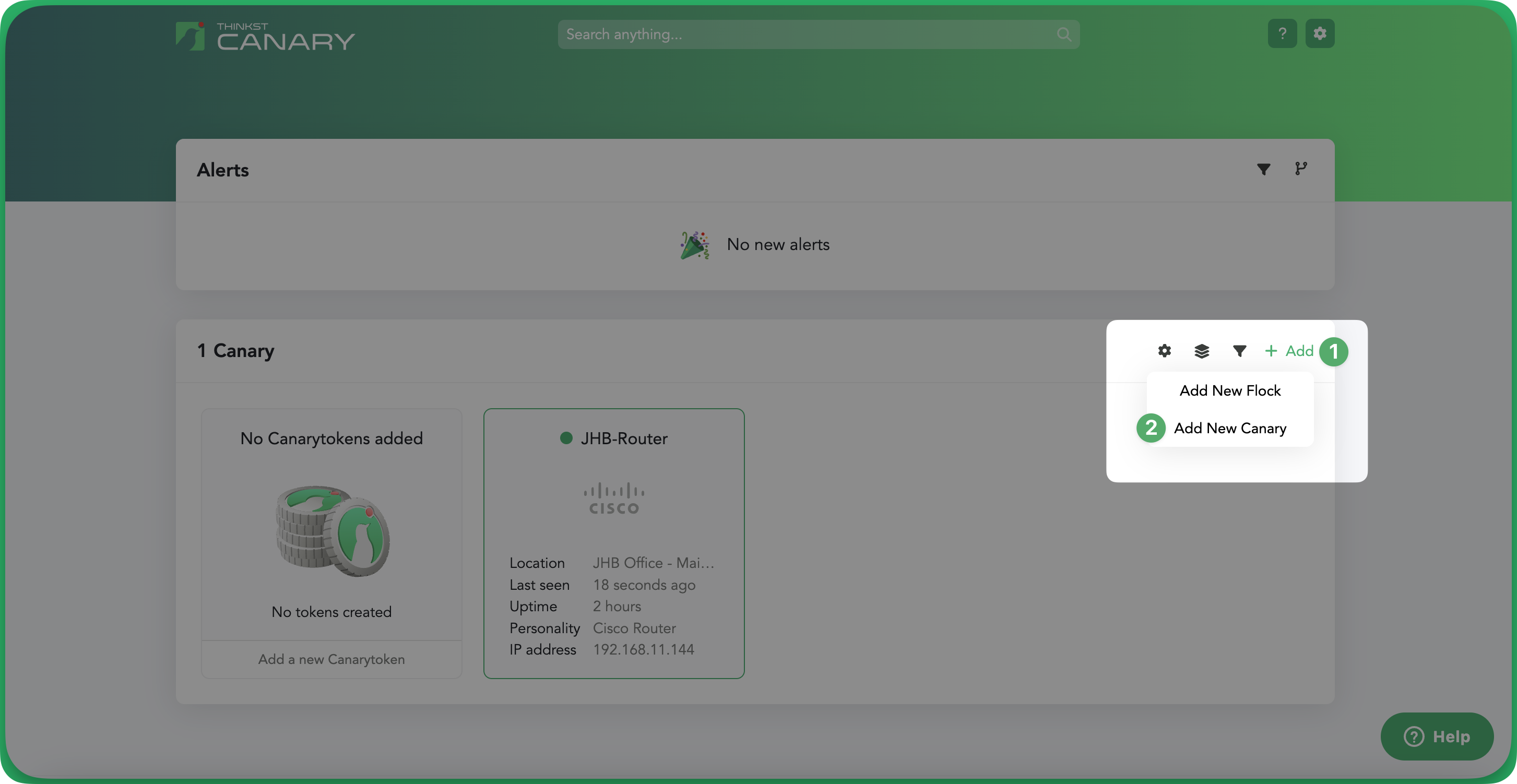

Click the + icon and click Add Canary.
Step 3:

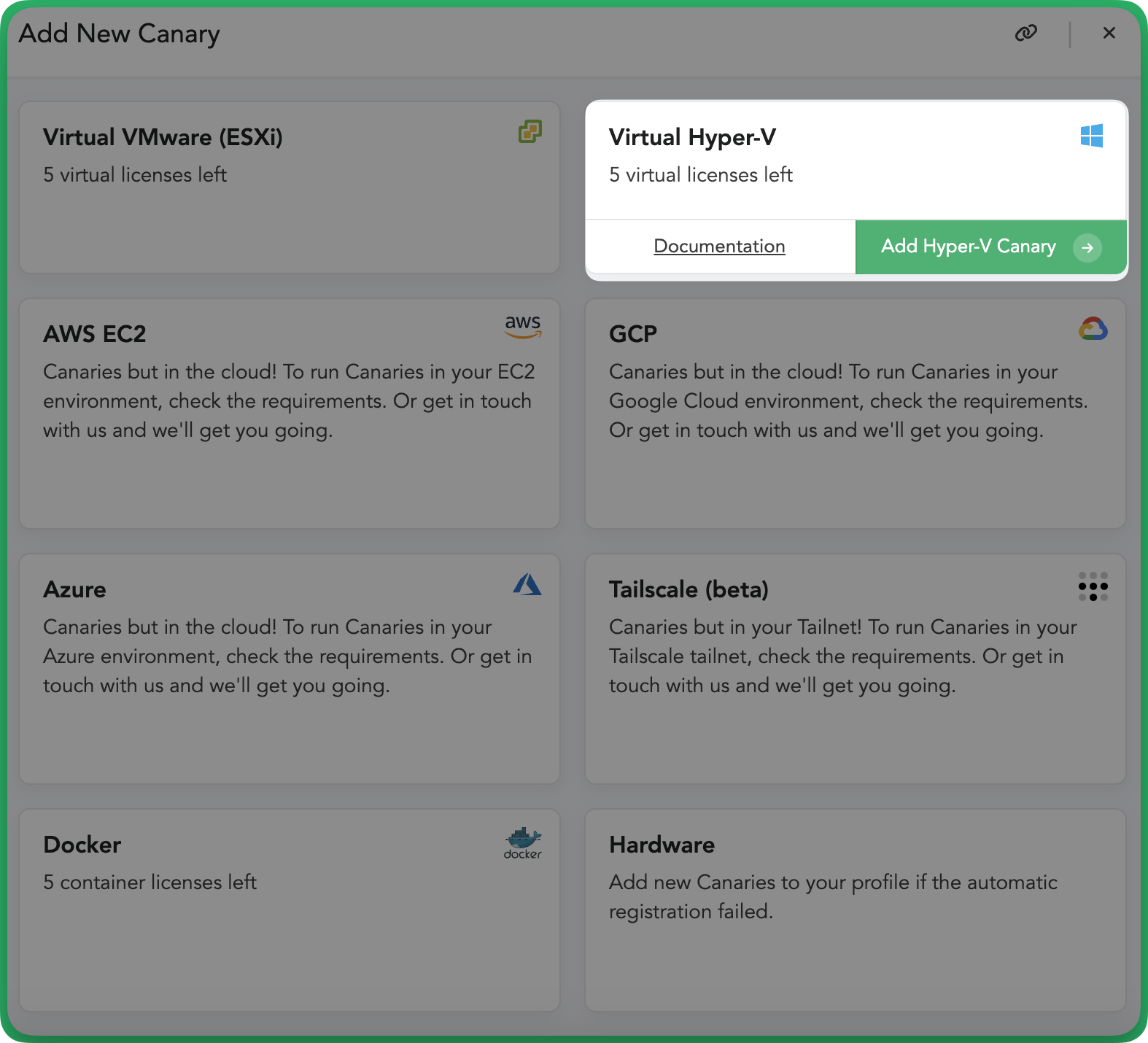

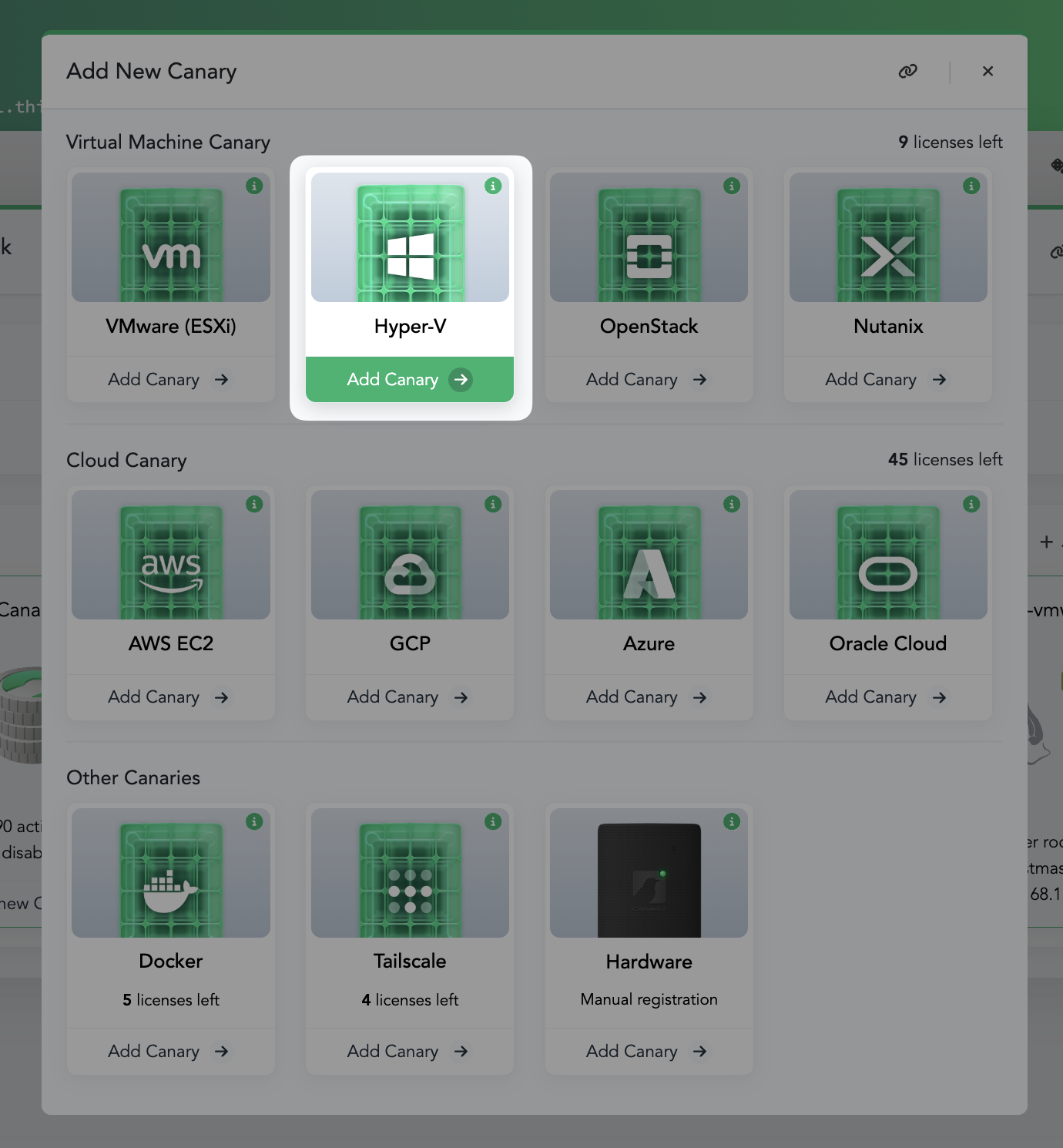

Select Add Hyper-V Canary.
Step 4:

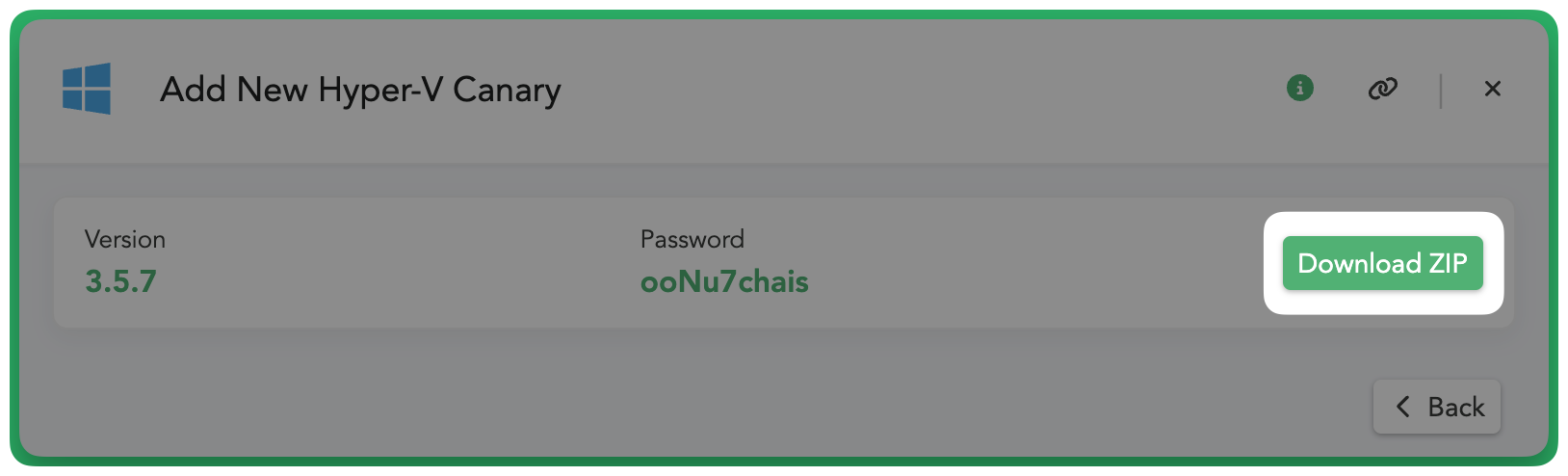

Click on Download Zip to start the download.
Step 5:

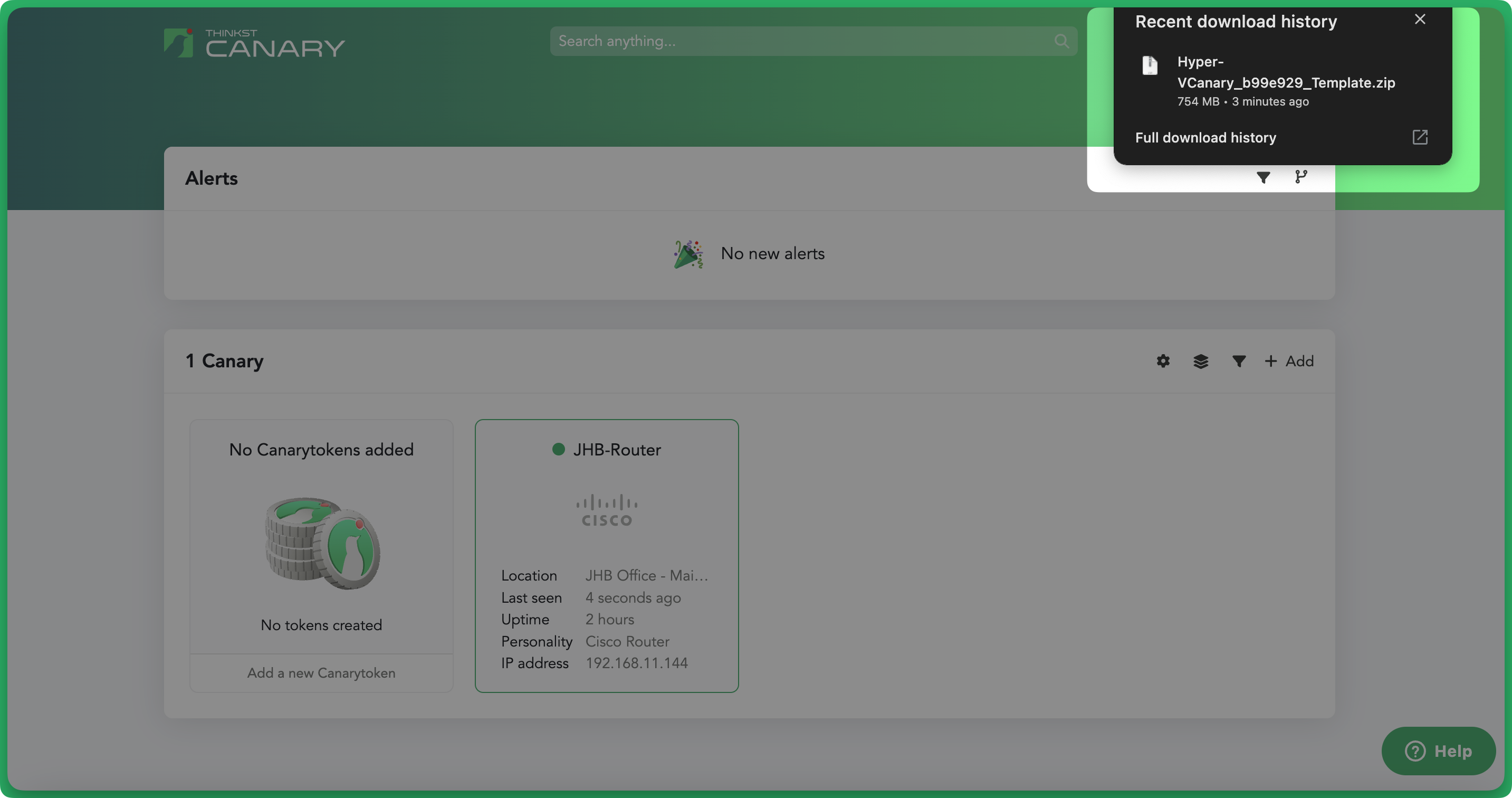

Your Hyper-V image will begin to download.
Note: once the download has been completed, extract the zip file to the storage location where your Canary will live in your Hyper-V environment and then move to Step 6.
Step 6:

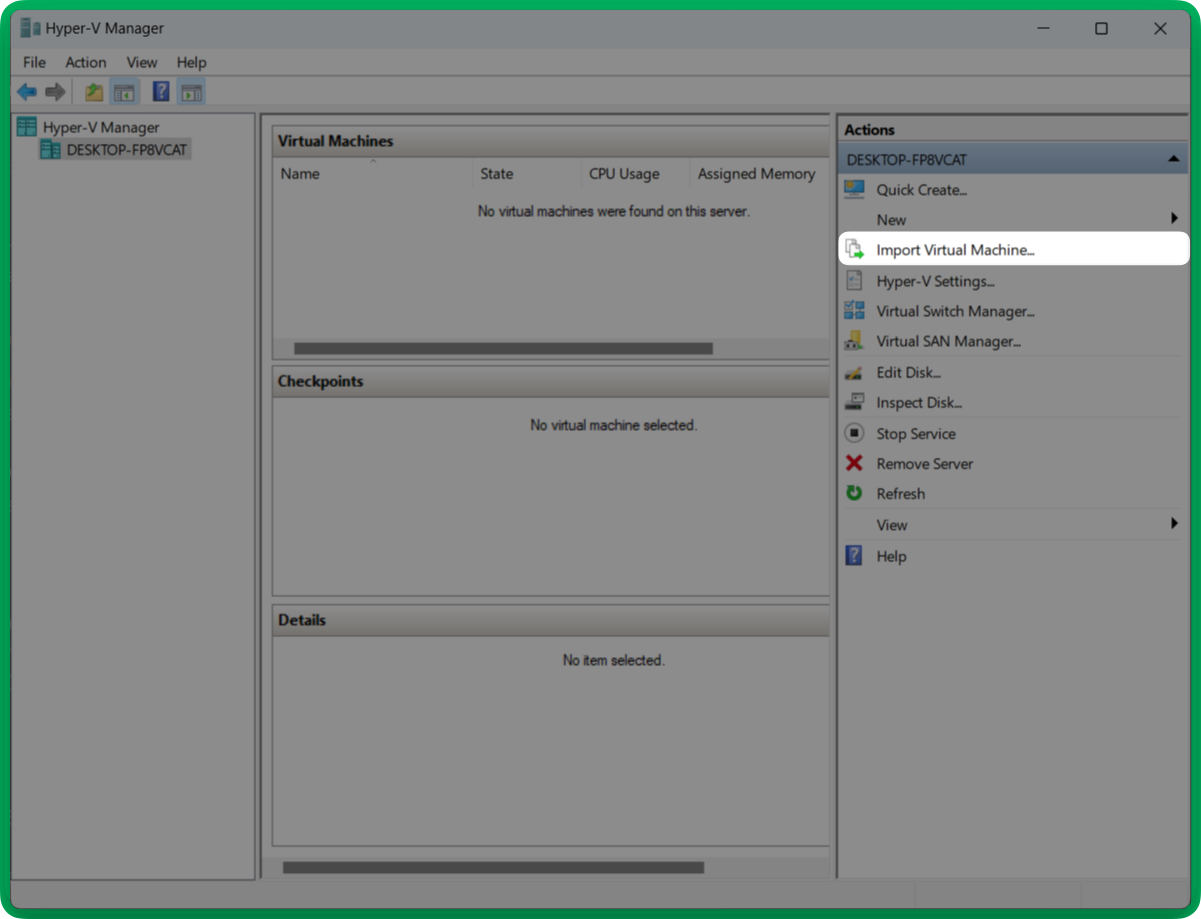

On Hyper-V Manager, click Import Virtual Machine.
Step 7:

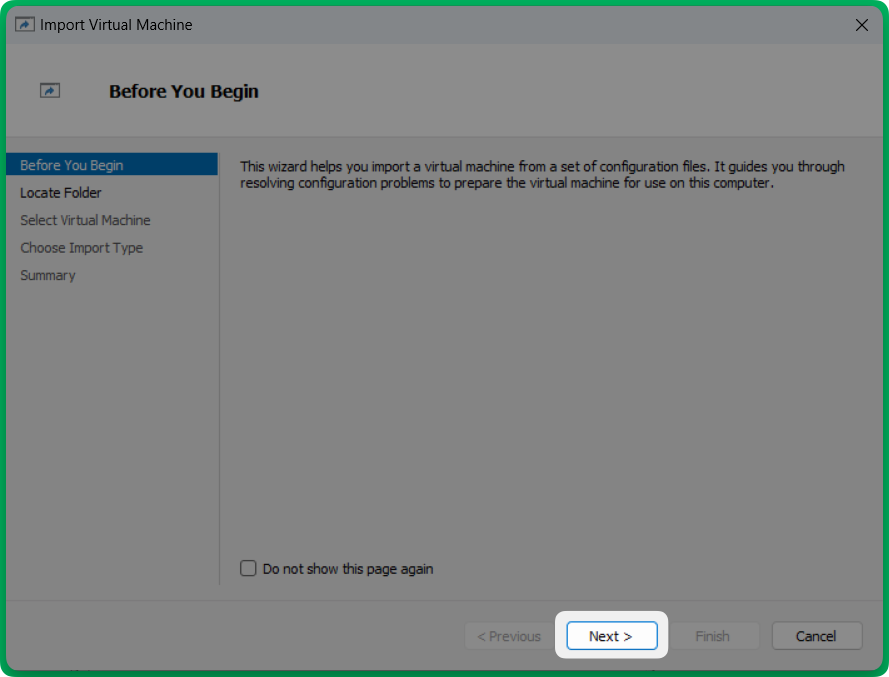

The wizard window will now appear, click Next.
Step 8:

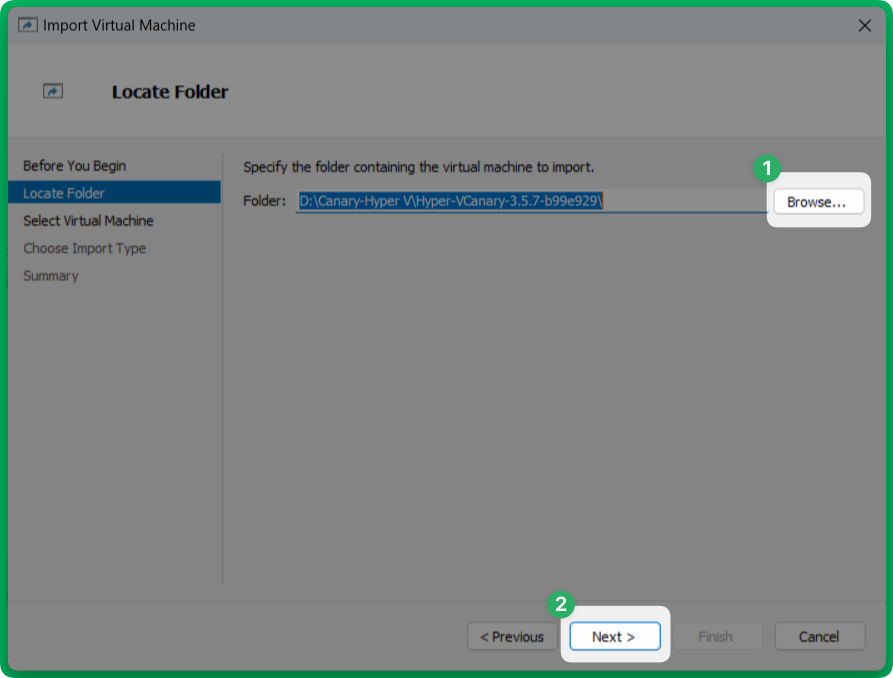

- Click Browse... and browse to the location where you extracted the Hyper-V image.
- Click Next.
Step 9:

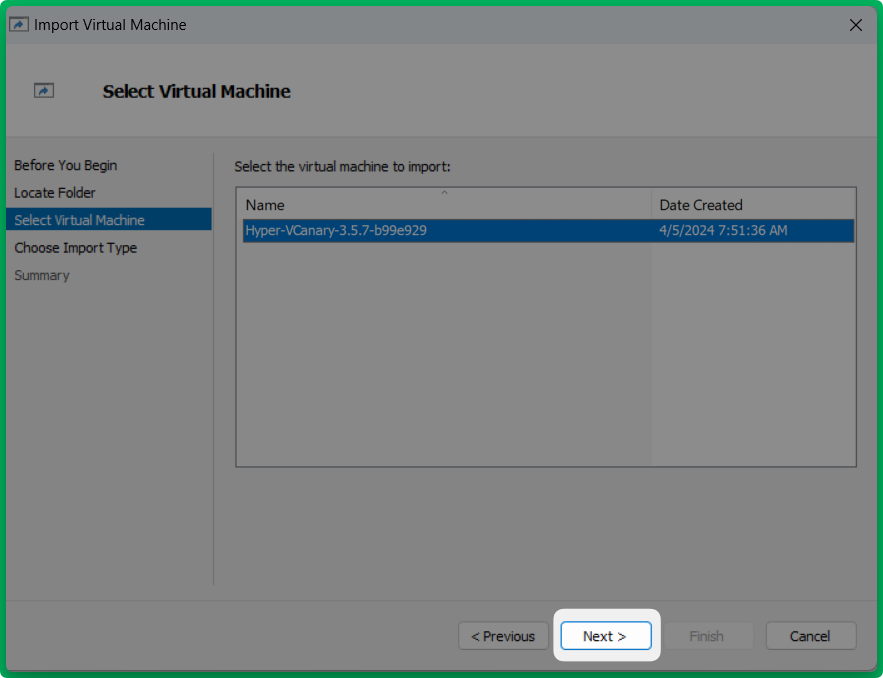

Confirm the Virtual Canary import and click Next.
Step 10:

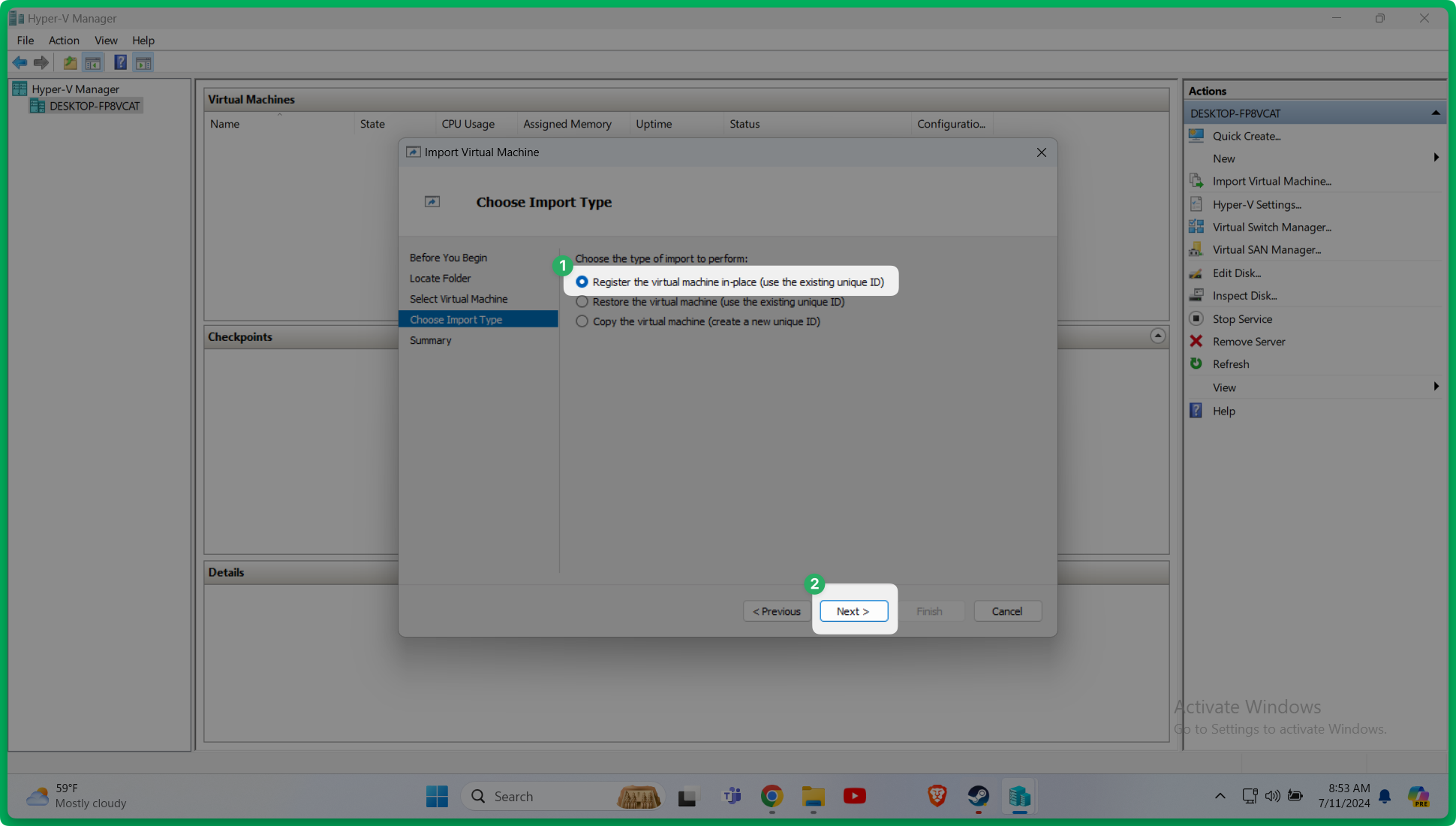

Select the import option and click Next.
Note: we selected Register the virtual machine in-place (use the existing unique ID)
Note: if deploying the multiple Canaries, please select Copy the virtual machine (create a new unique ID)
Step 11:

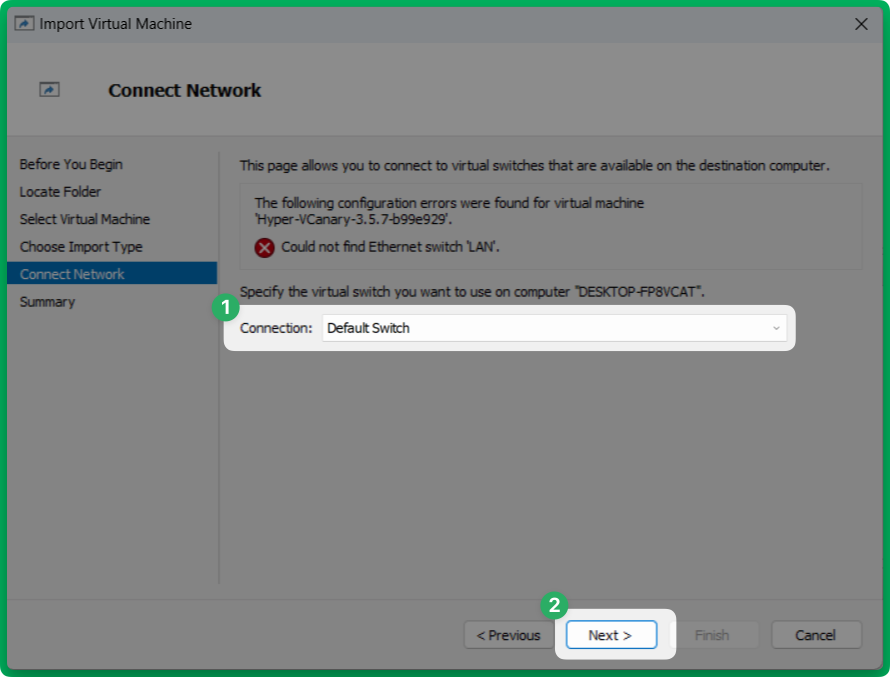

Select the virtual network from the drop-down list that the VM will connect to and click Next.
Step 12:

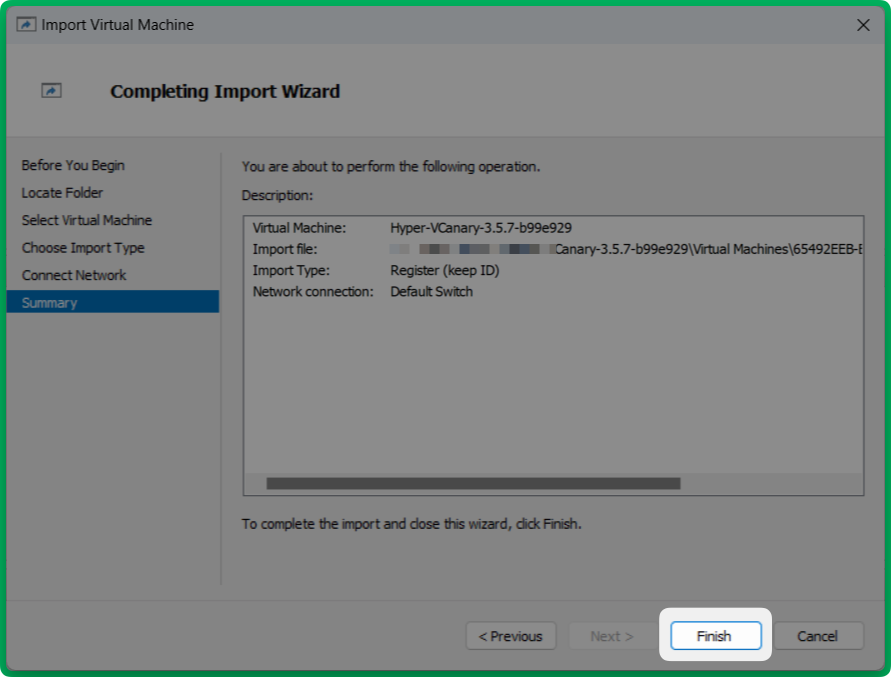

Review the VM information and click Finish.
Step 13:

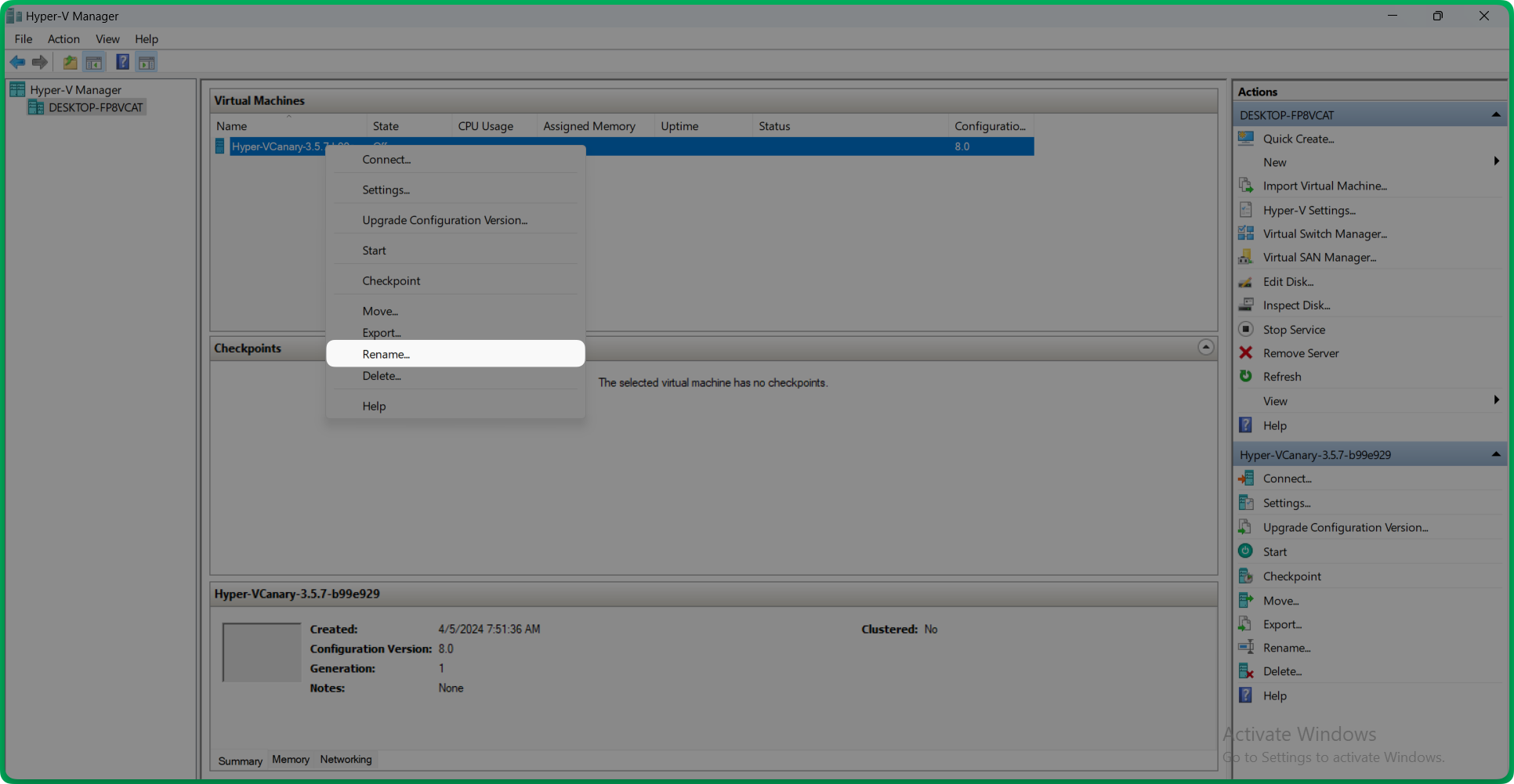

Right-click on the new VM and rename the VM to the specified name.
Step 14:

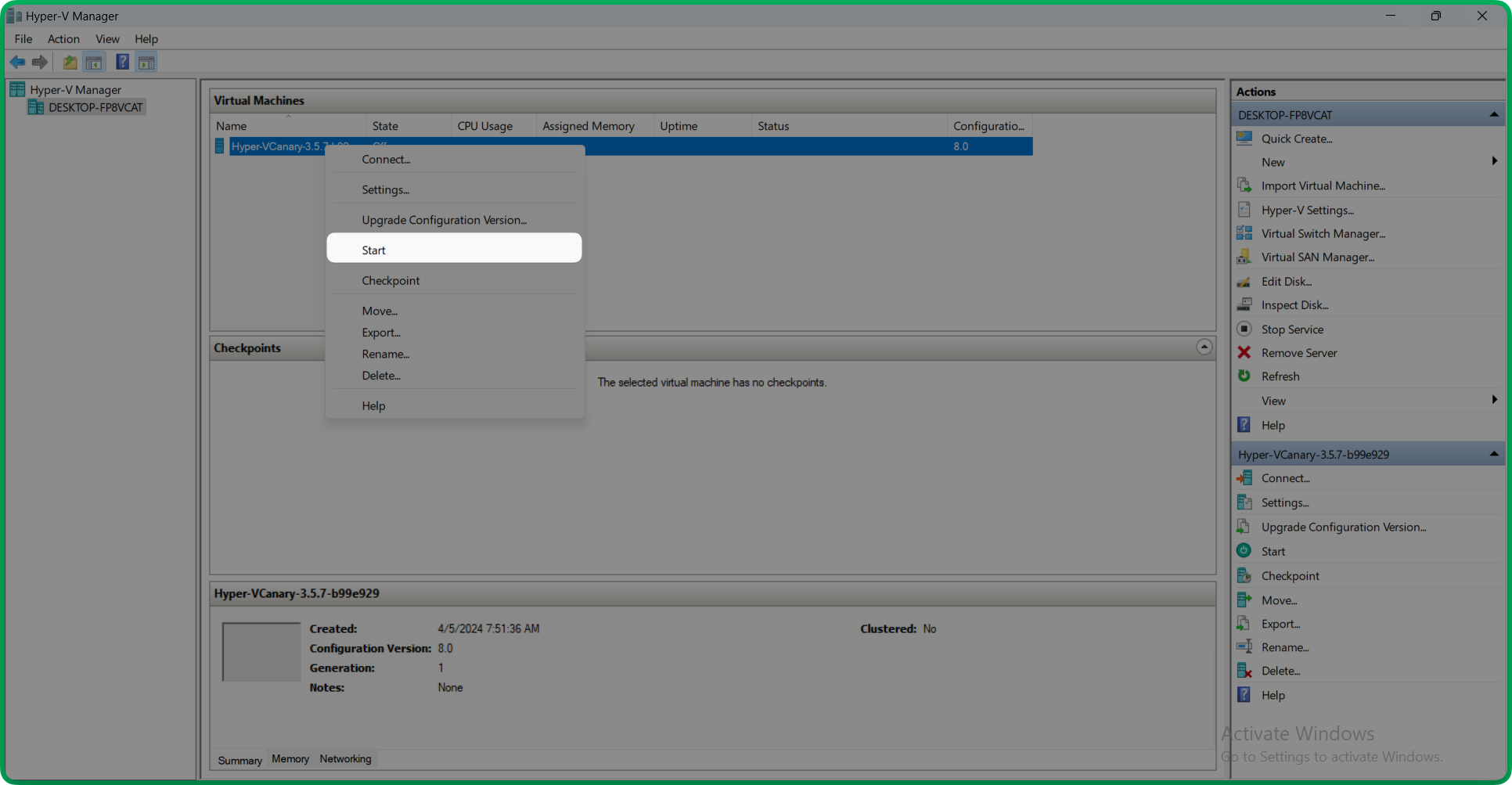

Right click on the VM and click Start to boot this Canary.
Step 15:

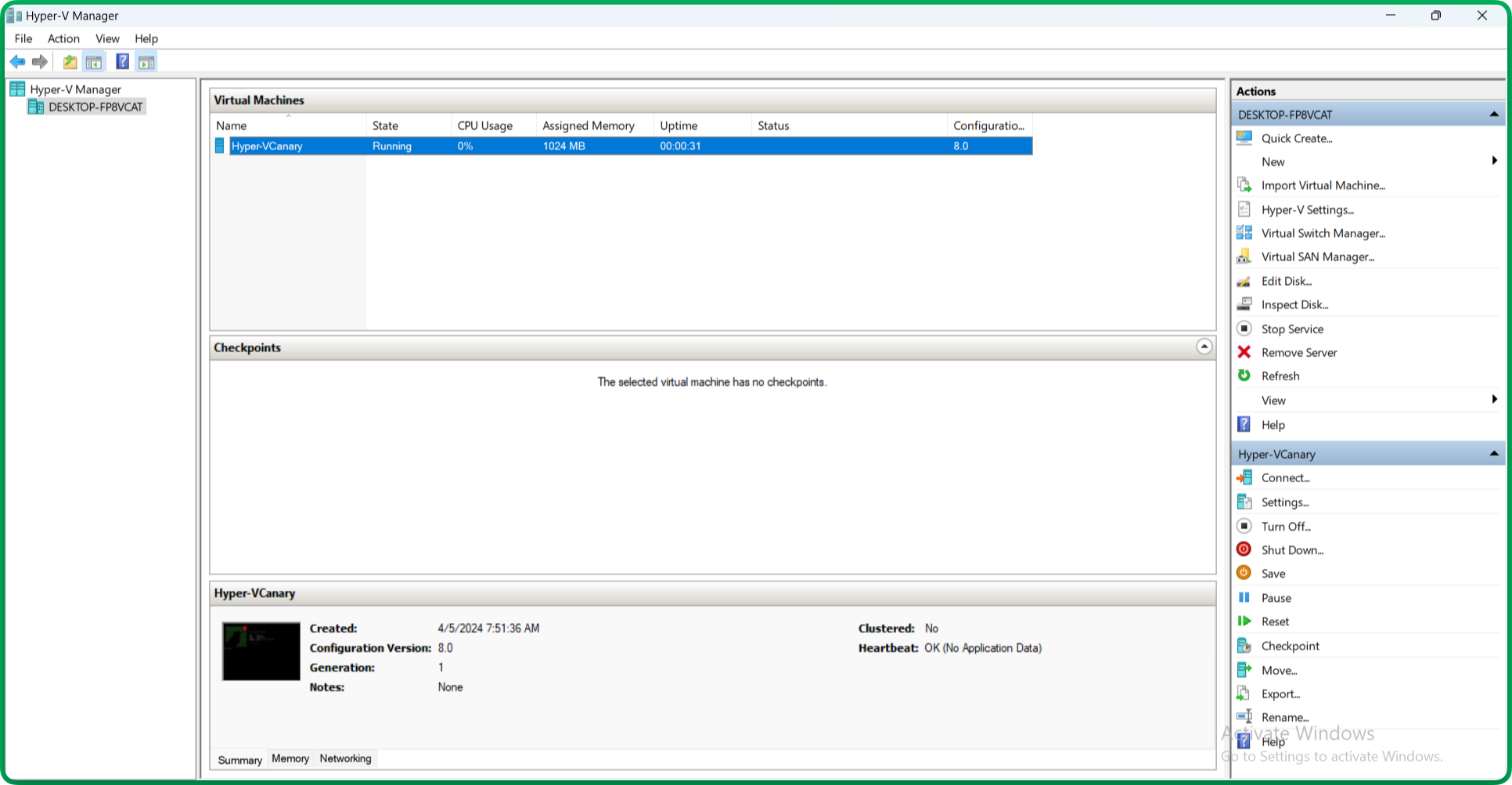

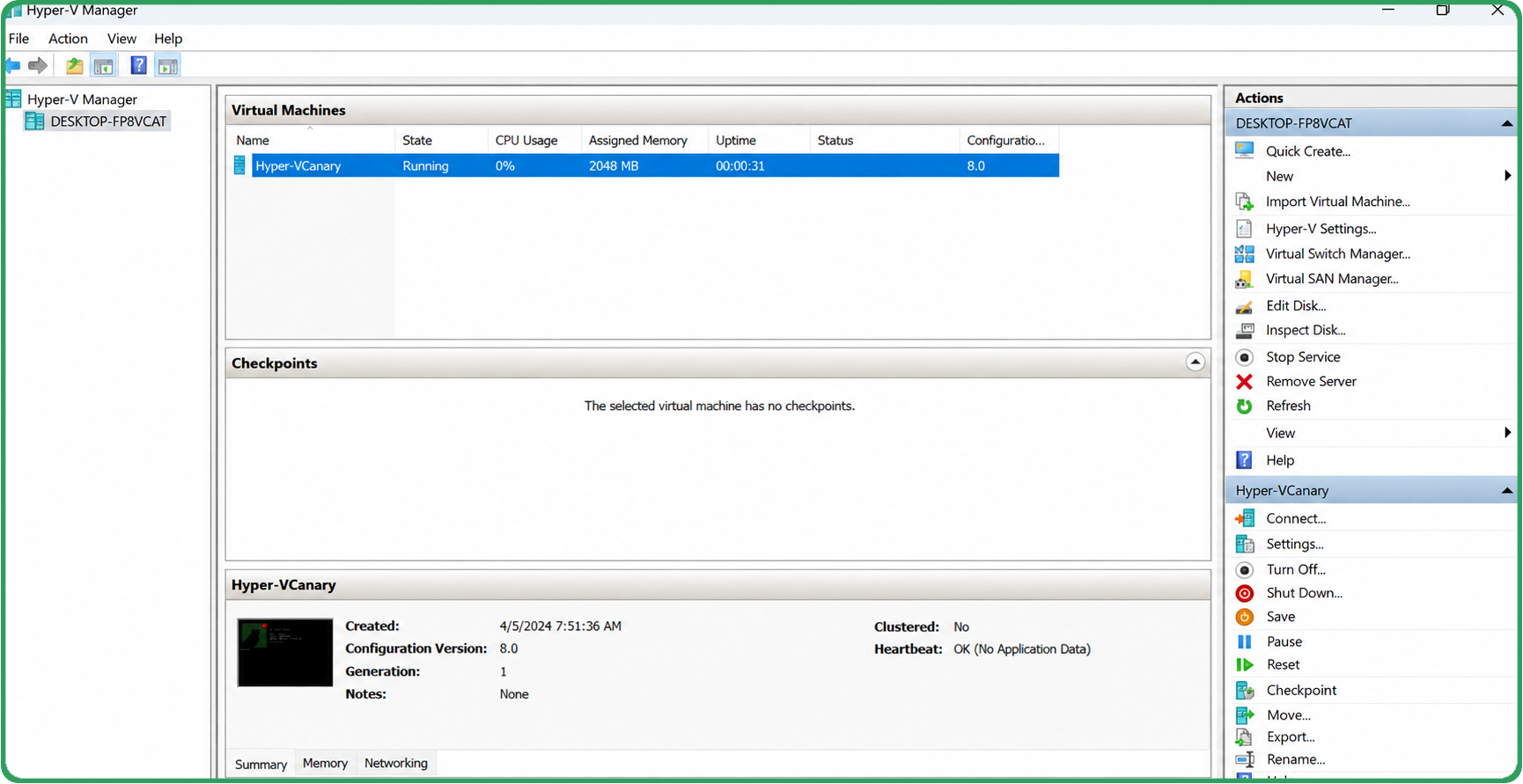

Your VM Canary is now running in Hyper-V.
Step 16:

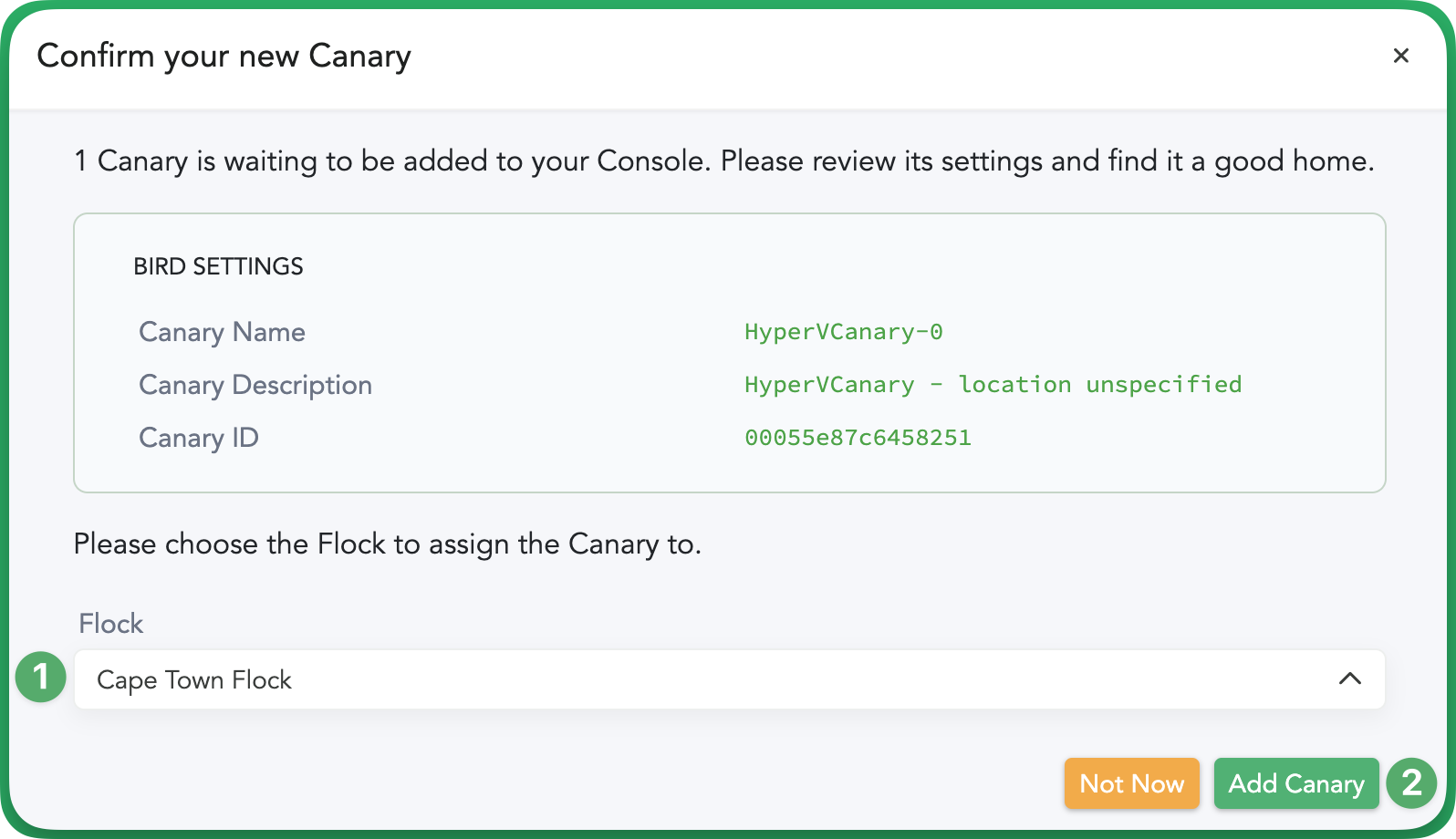

On your Console, you should see a pop up to confirm your new Canary.
Click Add Canary.
Step 17:

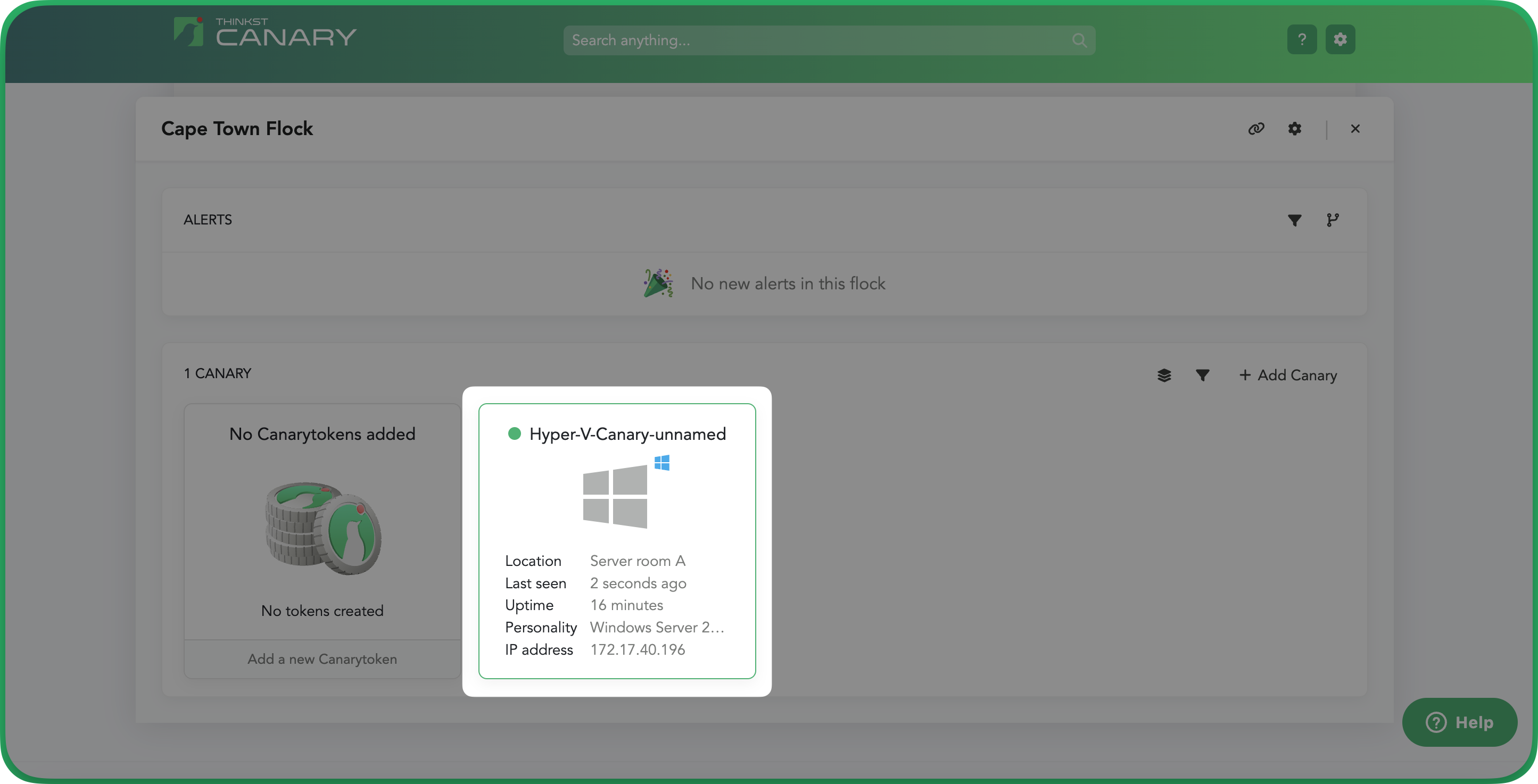

Your Virtual Canary will boot and connect back to your Console.
You can set up your Virtual Canary from within your Console using the remote management - Guide found here.
You're done! ;-)
