Configuring AWS SSO as a SAML IdP

This guide walks you through configuring AWS SSO as a SAML Identity Provider for your Canary Console. It covers setting up the Canary Console as a service provider, configuring SAML settings in AWS SSO, and mapping attributes to enable seamless Single Sign-On (SSO) authentication.

Enable Single SignOn from AWS SSO to your Canary Console with these steps.

Step 1: Log in to your Console

Step 2: Open Global Settings

Click on the gear icon, then Global Settings.

Step 3: Check SAML Settings

Click on SAML and your Console SAML settings will be displayed.

Step 4: Add New Application

Log in to AWS and navigate to AWS SSO > Applications and then select Add a new application.

Select Add a custom SAML 2.0 application.

Step 5: Configure Application

1. Add a Display name — i.e, we used Canary Console.

2. Add a Description — i.e, we used SAML Federation in Canary Console.

Step 6: Set Metadata

Select If you don't have a metadata file, you can manually type your metadata values.

Under Application ACS URL* field, paste the ACS (Login URL) from Step 3. (1)

Under Application SAML audience* field, paste the Service Provider ID from Step 3. (2)

Select Save changes. (3)

Step 7: Download Metadata

Select Download to download your metadata file and send this back to us in a support ticket here to complete the configuration on our side.

Step 8: Map Attribute

Select Attribute mappings tab.

Map the Subject attribute to "${user:email}" and set the Format to "emailAddress". Additionally, add a new attribute mapping client with the value canary-console and set the Format to unspecified.

Step 9: Assign permissions

Select which users and/or groups are allowed to authenticate.

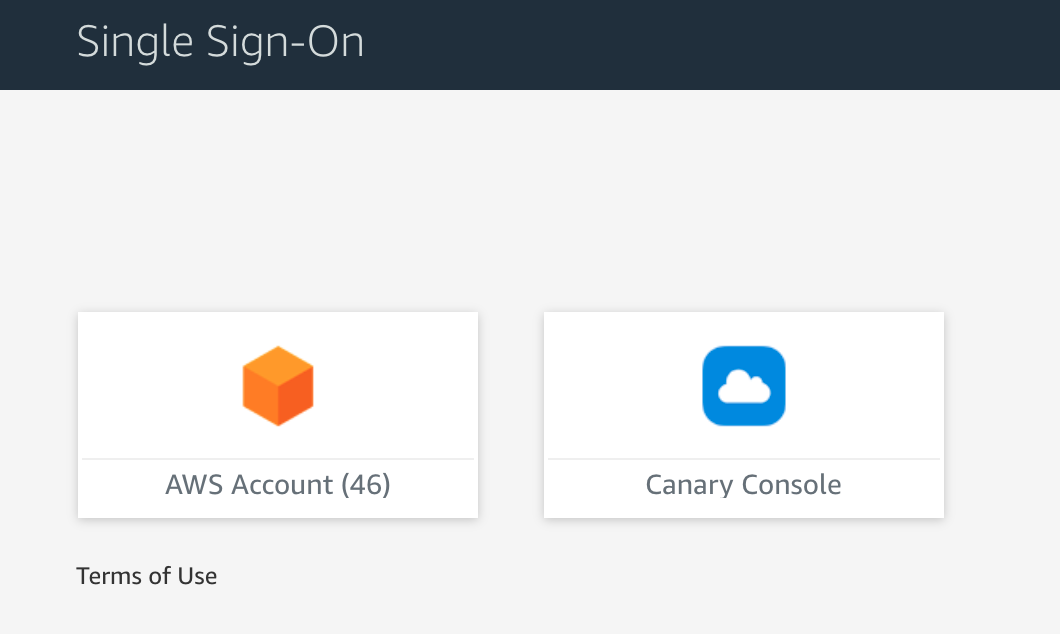

Click on Canary Console in your AWS SSO portal, once we've confirmed that we've completed the setup on our side.
