Note: This release of the Canary Splunk Add-on and App can be obtained as per step 2 below.
Any unexpected behaviour or issues can be reported to our support team.
Your Canary Console can easily integrate with Splunk. In this article, we'll walk you through installing the integration.
Follow the steps below to install both the App and the Technology Add-on (TA). As a pre-requisite, you'll need an API key and your Console's hostname.
Optional: If you would like to adjust the default index, click here to jump to the steps required.
Where do I install the Add-on and App?:
The Add-on is independent from the App and is responsible for the logic as well as data collection from your Console. This is generally installed on your heavy forwarder with internet access (direct or via a proxy server), where it will collect and forward data to your indexer tier.
The app is used for monitoring and provides a dashboard built from search macro's. The app is dependant on the add-on and both will need to be installed on your search head tier.
Note: Splunk 8.0.0 and higher are required for the new Canary integration.
Step 1: Log in to your Splunk console

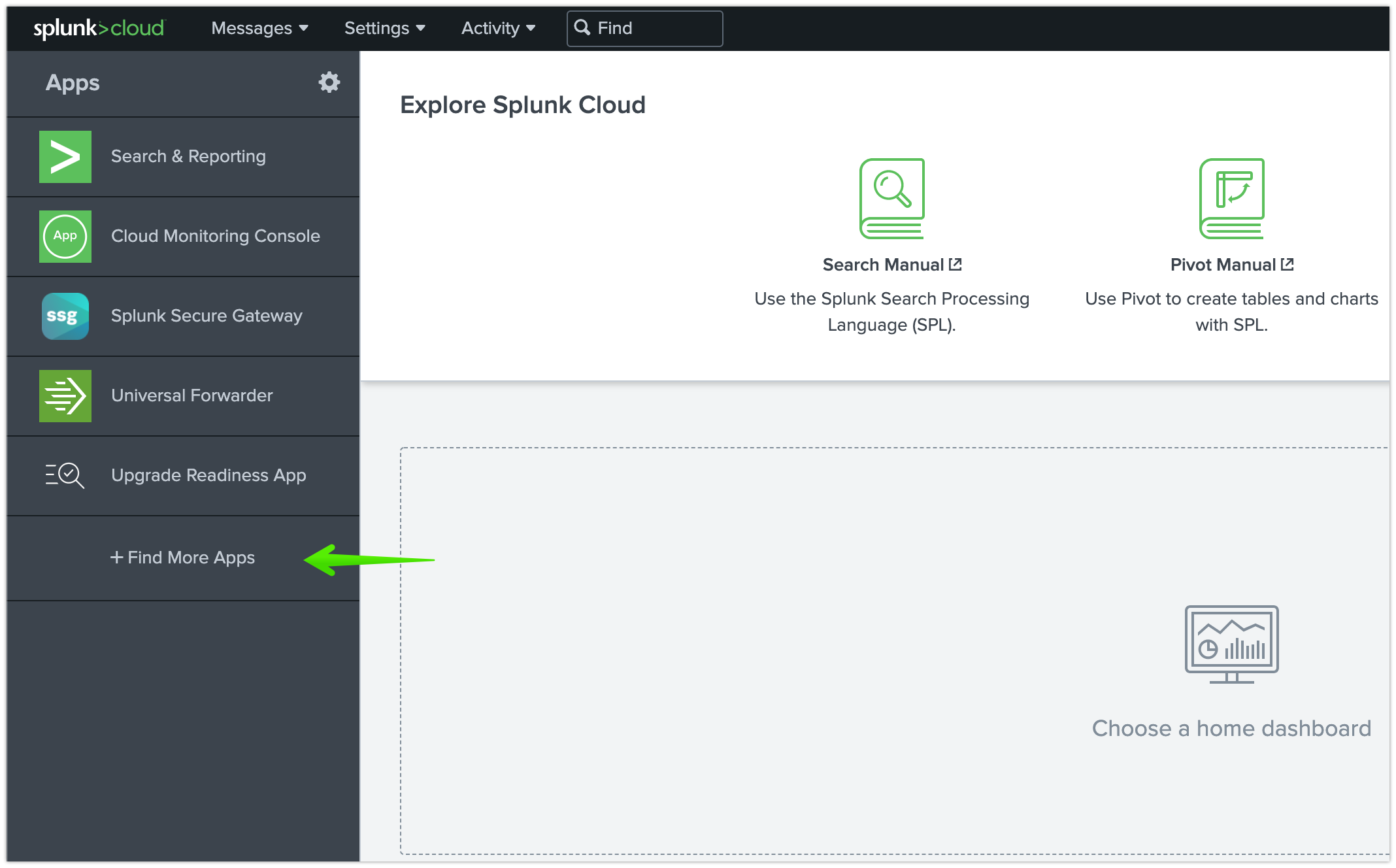

Head over to the "Find More Apps" menu.
Step 2: Installing the Canary Add-on and App
Search for the Thinkst Canary App and Thinkst Canary Add-on.
Install both via the links provided.
Step 3: Configuring the Add-on
Once installed, we can head over to the Add-on configuration.
Here we can configure the add-on to fetch data from your Console.

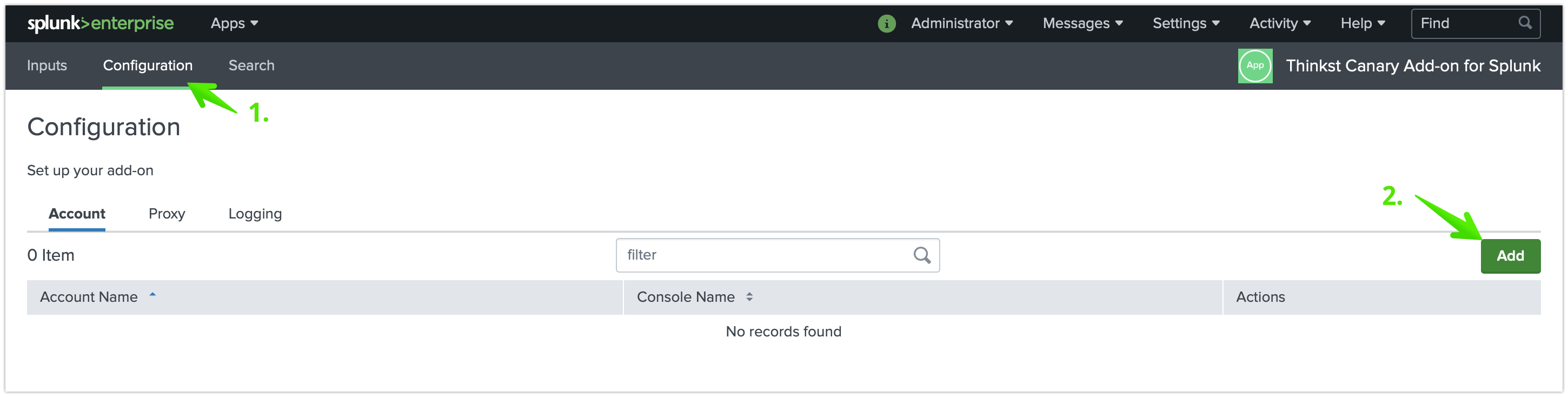

Select the Configuration tab, then the Add button.
A window will appear where you need to enter the details of your Canary Console.
Account Name: Enter an identifier for your Console which we will later use to reference the connection.
Console Name: Enter your Console's domain hash.
API Key: Insert your Console's API key.
Note: Your Console's domain hash and API key can be found in your Console's global settings. Further reading on where to locate the details can be found here.
Once complete click the "Add" button.
Step 4: Enabling data inputs
Head over to the Inputs tab, here we'll enable the inputs and edit each one to make use of the Console connection.
Select each input and edit the Index if necessary, then select the account name that we created previously.
Note: Remember to do this for each data input to ensure you are collecting all data.
Once complete enable each input to start collecting data.
Step 5: Configuring the App
Next it's time to configure the app, so head over to the App configuration section again.
Under configuration, you'll need to enter your Console settings again.
Console Name: Enter your Console's domain hash.
API Key: Insert your Console's API key.
Once complete, click the "Save Configuration" button.
Step 6: Viewing Data
To start browsing data, select the Apps drop-down menu, then select the Thinkst Canary App to view the dashboard.
Note: It may take some time to populate data into the dashboard, and perform the initial sync. If you don't have any data after a couple of hours, contact our support team at support@canary.tools for assistance.
Step 7: Using the Data
You are able to view, acknowledge or delete alerts directly from Splunk.
Click on any of the alerts within the Incident Window to view its detailed information.
You're able to acknowledge the incident in your Console by click the green "Acknowledge Incident" button.
You're also able to delete an incident once it has been acknowledged, by clicking the red "Delete Incident From Console" button.
You're done! ;-)
Optional: Adjusting the default index
Head over to the add-on's input page once more.
The index column indicates the current index data will be inserted into.
Select the pencil icon of the input you'd like to modify the index of.
Step 1: Update inputs
Insert your preferred index then click the Update button when done.
Repeat the change for the other indexes you'd like adjusted.
Step 2: Updating the Search Macro
Click on the settings drop-down menu then Advanced search.
Click on Search Macro's
Click on the canarytools_index entry.
Update the Definition entry with your preferred index, then click Save when complete.
